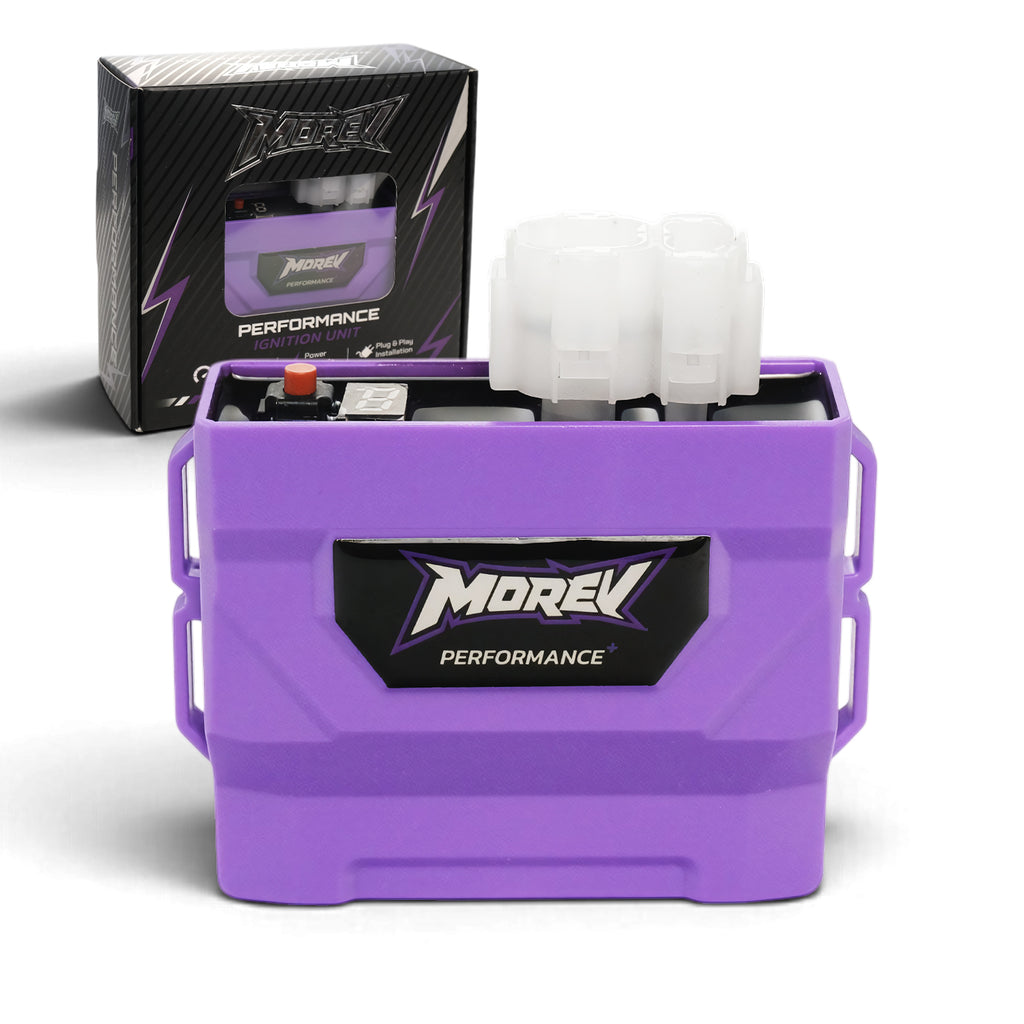

MOREV GY6 6-Pin DC 9-Curve Adjustable CDI Box for 50–150cc ATV & Go Kart

Digital adjustable DC CDI for GY6-family 50cc–150cc four-stroke engines. The MOREV 9-Curve CDI Box gives owners of compatible GY6 6-pin (4+2) DC ignition systems nine selectable ignition timing maps. It is designed for fitment-specific replacement or tuning of the ignition control unit on selected small powersports vehicles, with a push-button setting interface and a digital curve display.

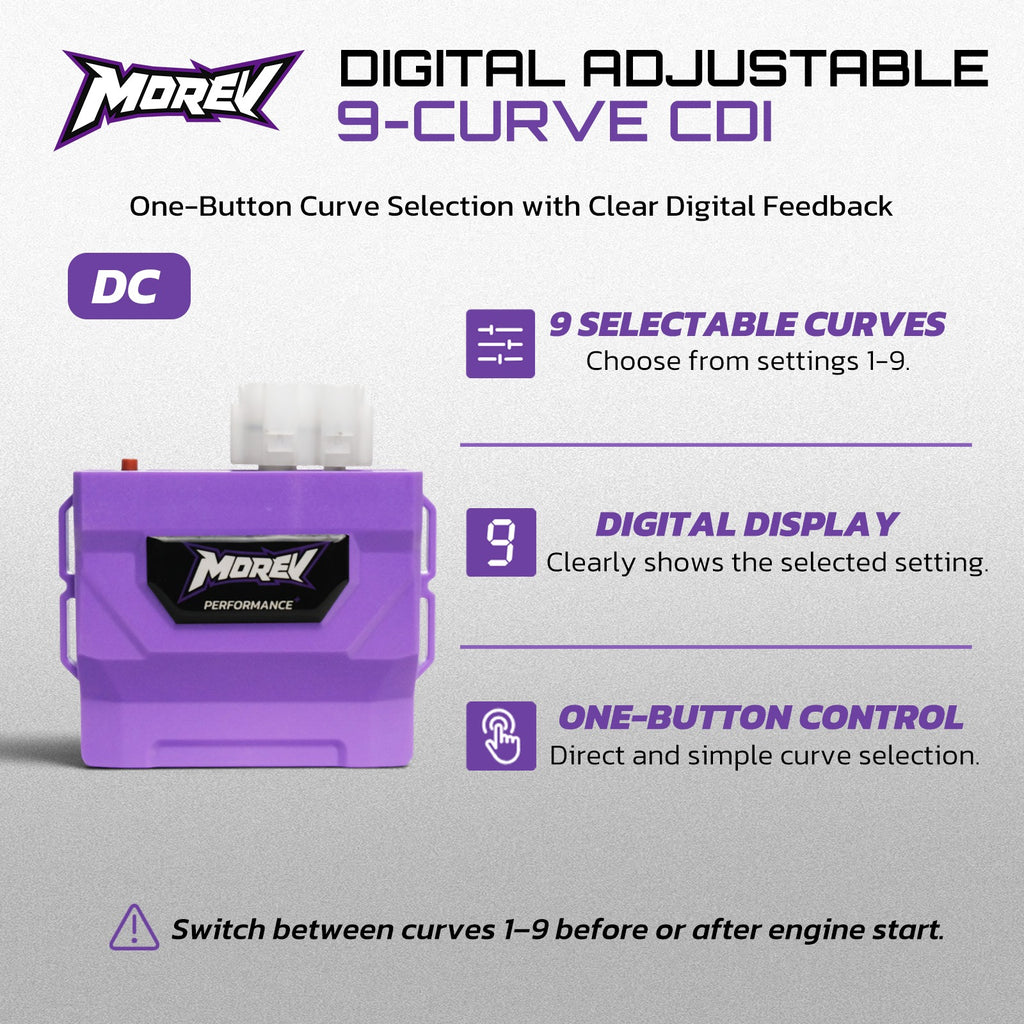

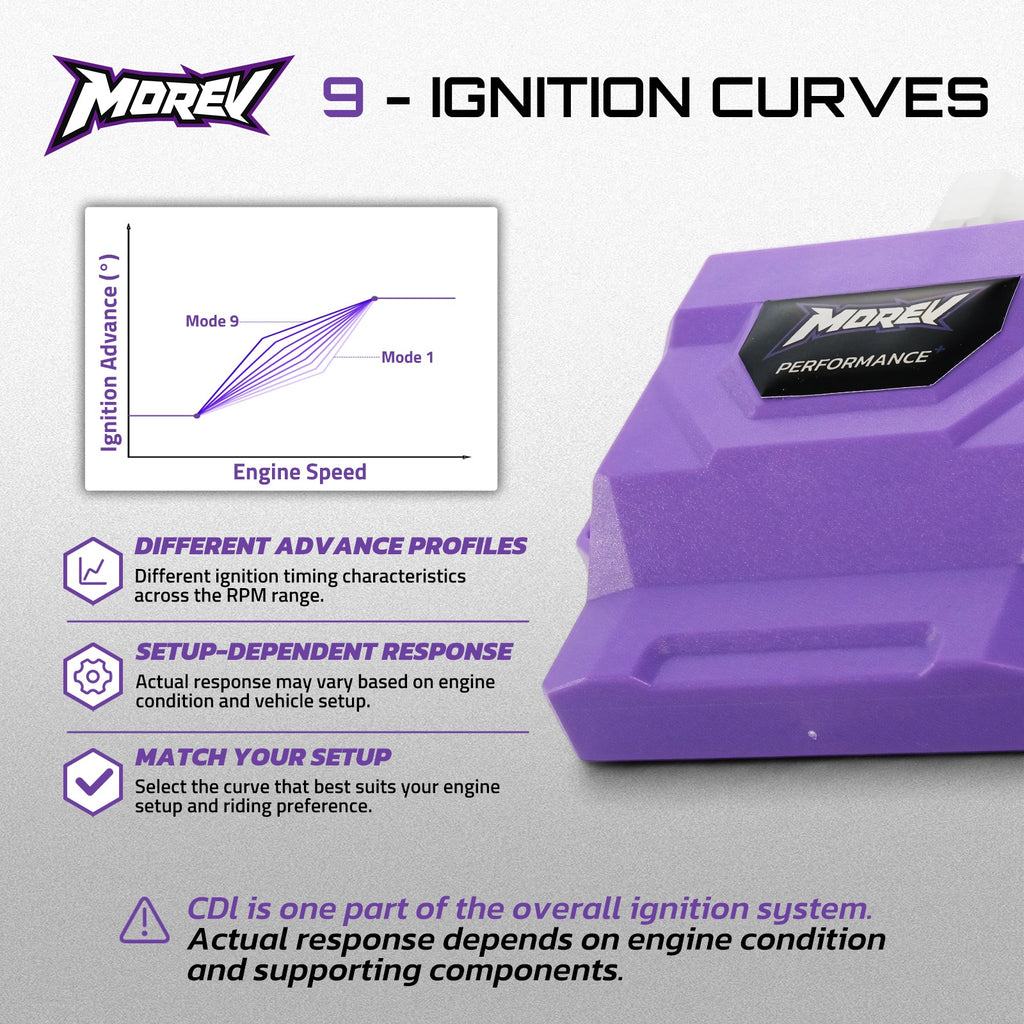

Understanding the 9 Selectable Ignition Curves

Ignition timing affects when the spark fires relative to piston movement. Changing the timing curve alters how spark advance progresses across engine operating conditions, and may change throttle response, pulling characteristics and riding feel. This CDI provides settings 1 through 9. The MOREV curve guide describes settings near Curve 1 as favoring later-range power delivery and settings near Curve 9 as emphasizing earlier response. These are alternative ignition maps, not nine fixed horsepower levels or an assurance of increased engine output.

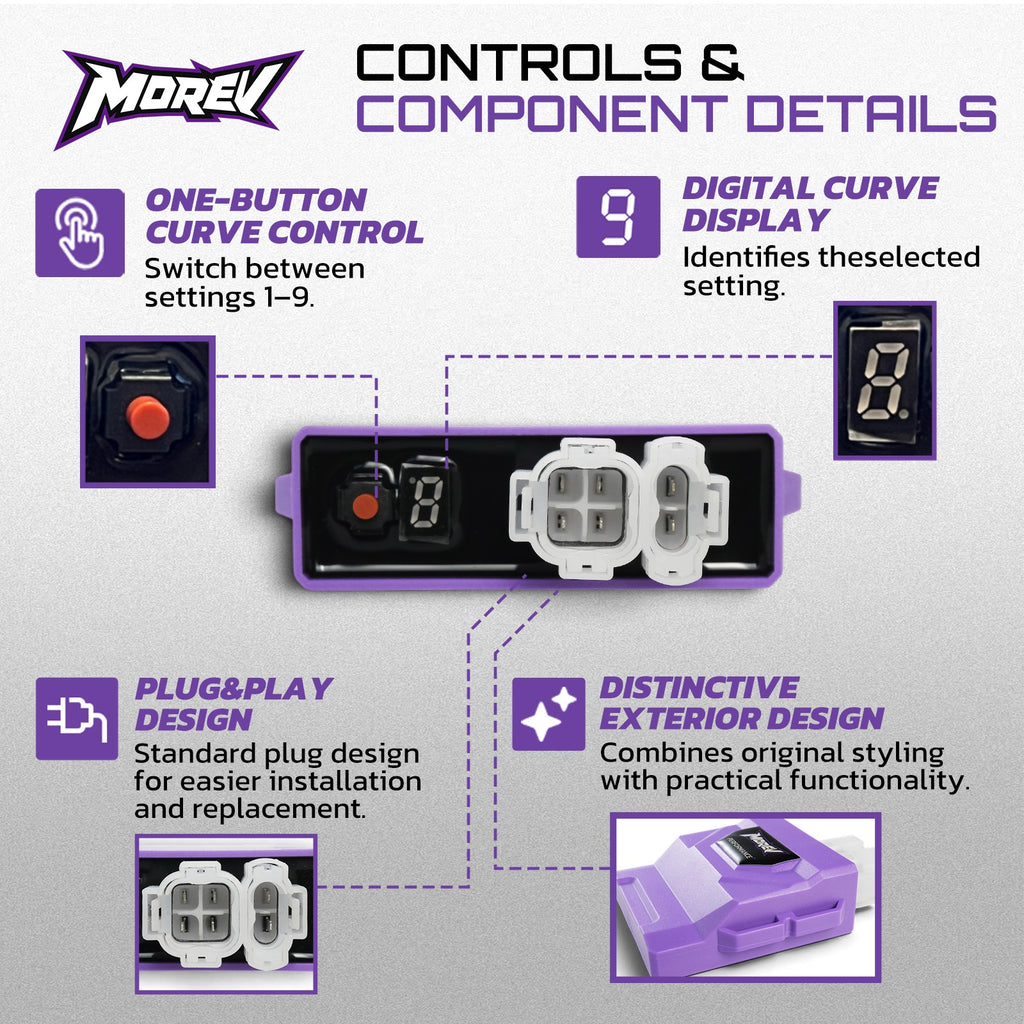

Features & Controls

• Nine adjustable maps: compare nine pre-programmed ignition timing curves to find the behavior suited to your engine.
• Easy push-button selection: the built-in button changes the selected curve; the digital display shows the current setting.
• Last-setting memory: the module recalls the last selected curve when restarted.
• Engine-running adjustment support: settings can be changed after the engine has started; make changes only in a safe, stationary situation and follow the supplied operating guide.
• Specific DC electrical configuration: built for matching GY6 6-pin (4+2) DC CDI circuits; not interchangeable with AC modules.

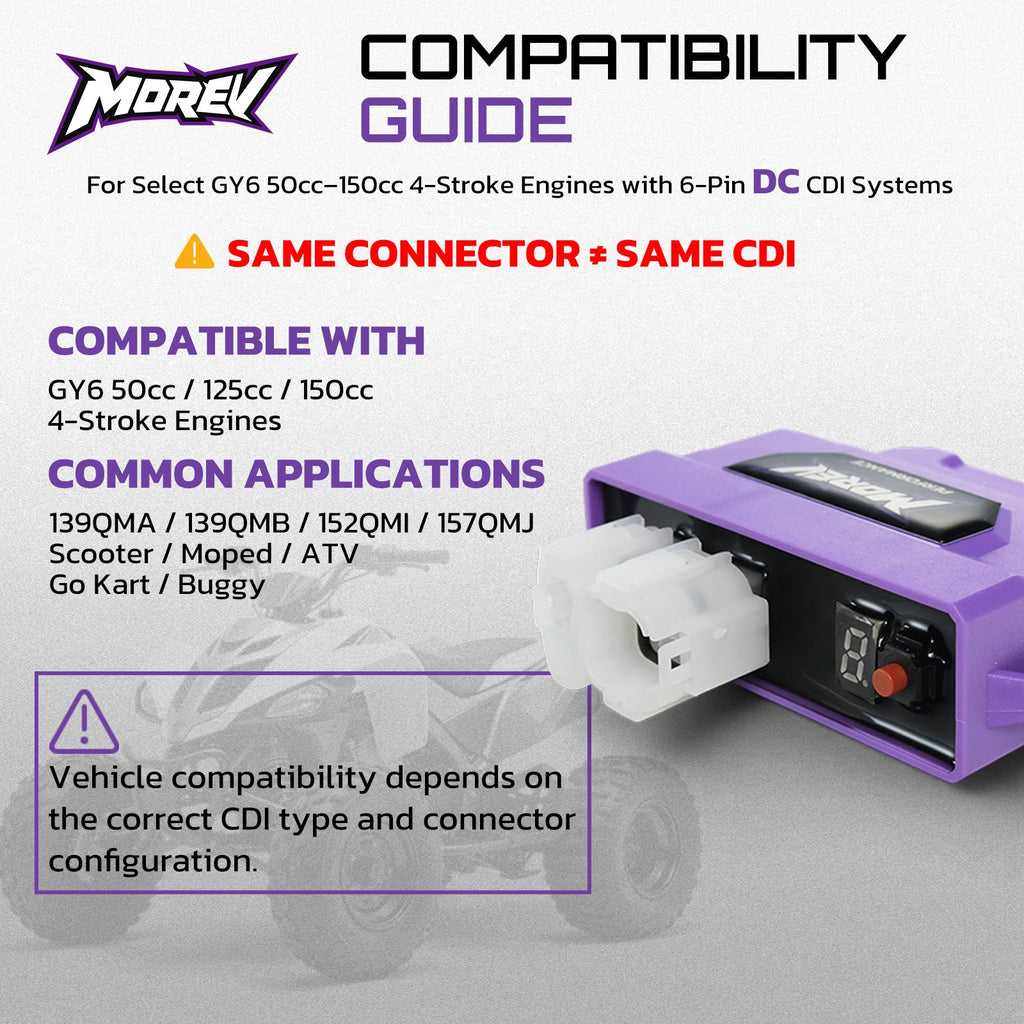

Engine Compatibility & Fitment Guide

Intended for selected GY6-family 50cc–150cc four-stroke engines with the appropriate 6-pin (4+2) DC CDI connector and wiring. Common GY6 engine-family references include 139QMA, 139QMB, 152QMI, 157QMI and 157QMJ. Matching versions may be installed on certain scooters, mopeds, ATVs, go-karts and buggies. These engine designations and vehicle categories are examples, not guarantees of fitment; only a compatible 6-pin DC CDI circuit and matching pinout can confirm suitability.

Before ordering, compare all four: engine family (GY6 versus CG), DC versus AC ignition type, physical connector arrangement, and the actual wire-to-pin assignments of the original module. Connector shape or advertised displacement alone does not establish fitment.

Electrical & Product Specifications

• Brand: MOREV
• Product: Digital adjustable CDI ignition box
• Engine family: GY6 four-stroke
• Ignition power type: DC only
• Connector: 6-pin, split 4+2 configuration
• Curve settings: 1–9, no setting 0
• Controls: Integrated button and numerical display
• Memory: Retains last selected curve after power-off

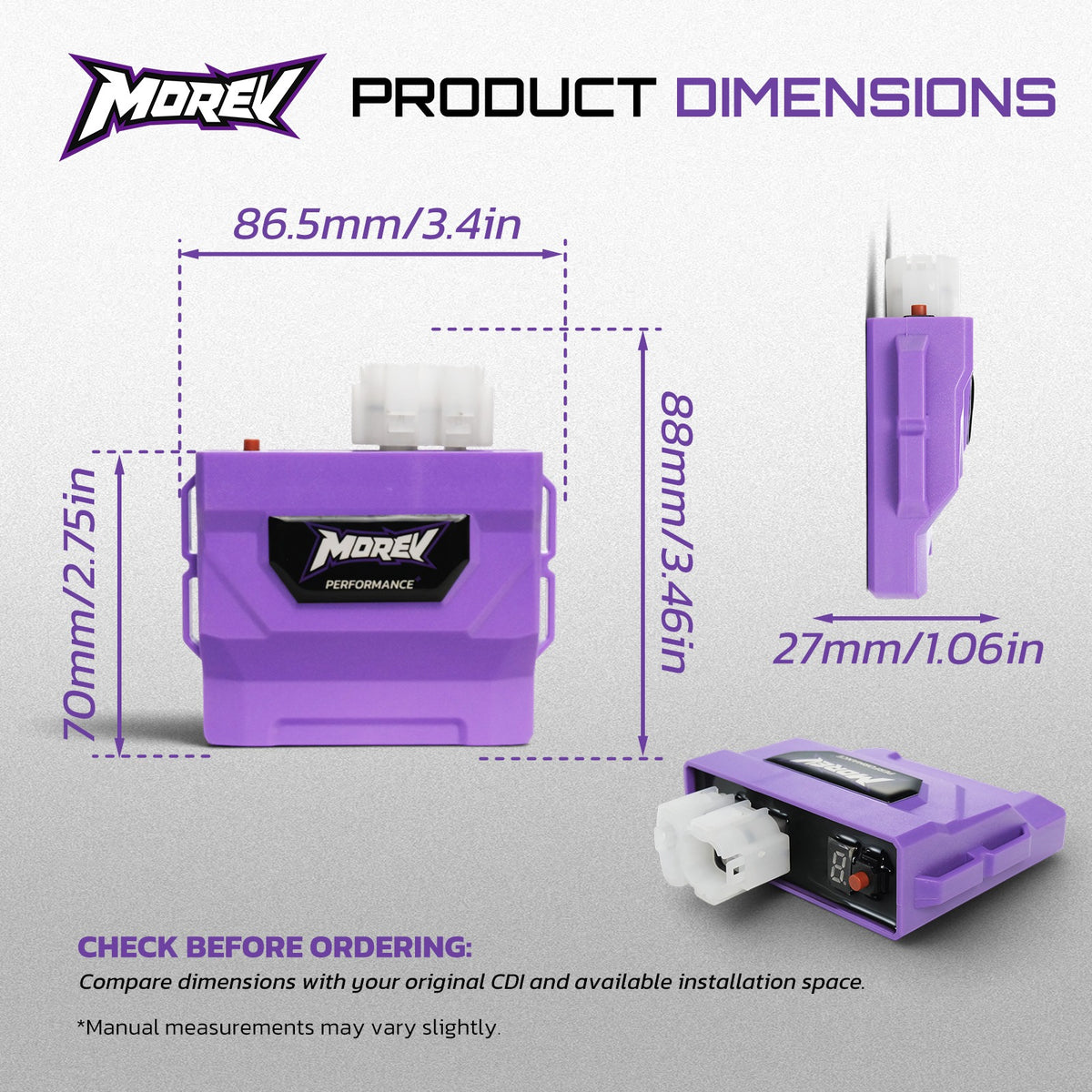

• Approximate dimensions: 86.5 mm overall width × 70 mm housing height × 27 mm thickness; 88 mm total height including connector (measurements may vary slightly)

Installation & Important Warnings

This DC-powered version is designed for an ignition setup with the required DC power feed. It is not a replacement for a visually similar GY6 AC CDI. This specific product is the DC version only. The supplied GY6 terminal-side diagram illustrates a connector position shared by different AC and DC ignition configurations. For this DC CDI, terminal 6 requires battery +12V DC, not the stator AC exciter output. The reference identifies terminal 1 as pickup/trigger signal, terminal 2 as ignition coil output, terminals 3 and 4 as grounds, and terminal 5 as kill switch/engine stop. Connect both grounds according to the product wiring reference, and verify your vehicle's actual harness orientation and pin assignments. Never connect AC and DC ignition power sources together and never supply AC exciter voltage to this DC-only module. Turn off the vehicle and disconnect the power before installation. Verify ground, pickup/pulse signal, ignition coil connection and the harness pinout against your original CDI. Incorrect wiring may result in no-start conditions or component damage; consult a qualified mechanic if the configuration is uncertain.

Frequently Asked Questions

Does every GY6 engine use this CDI?

No. Engine-family names cover multiple ignition wiring systems. This is the GY6 6-pin DC version only.

Are settings 1–9 RPM limits?

No. They are nine ignition timing curves. This product should not be confused with the MOREV DIP-switch speed-limit CDI series.

Does the unit return to its first curve after shutdown?

No. It retains the previously selected curve in memory.

Can I change the selected curve after starting the engine?

Yes, the control remains available after startup. Stop the vehicle safely before making any changes.

Shipping & Support

MOREV orders ship from Guangzhou, China. Available shipping destinations, charges and estimated delivery times depend on the delivery address and parcel weight. Review our Shipping Policy, or contact MOREV with a clear photo of your original CDI connector if you need help checking the configuration.
