MOREV 4-Pin DC 9-Curve Adjustable CDI Box for CD110 50–125cc ATV & Pit Bike

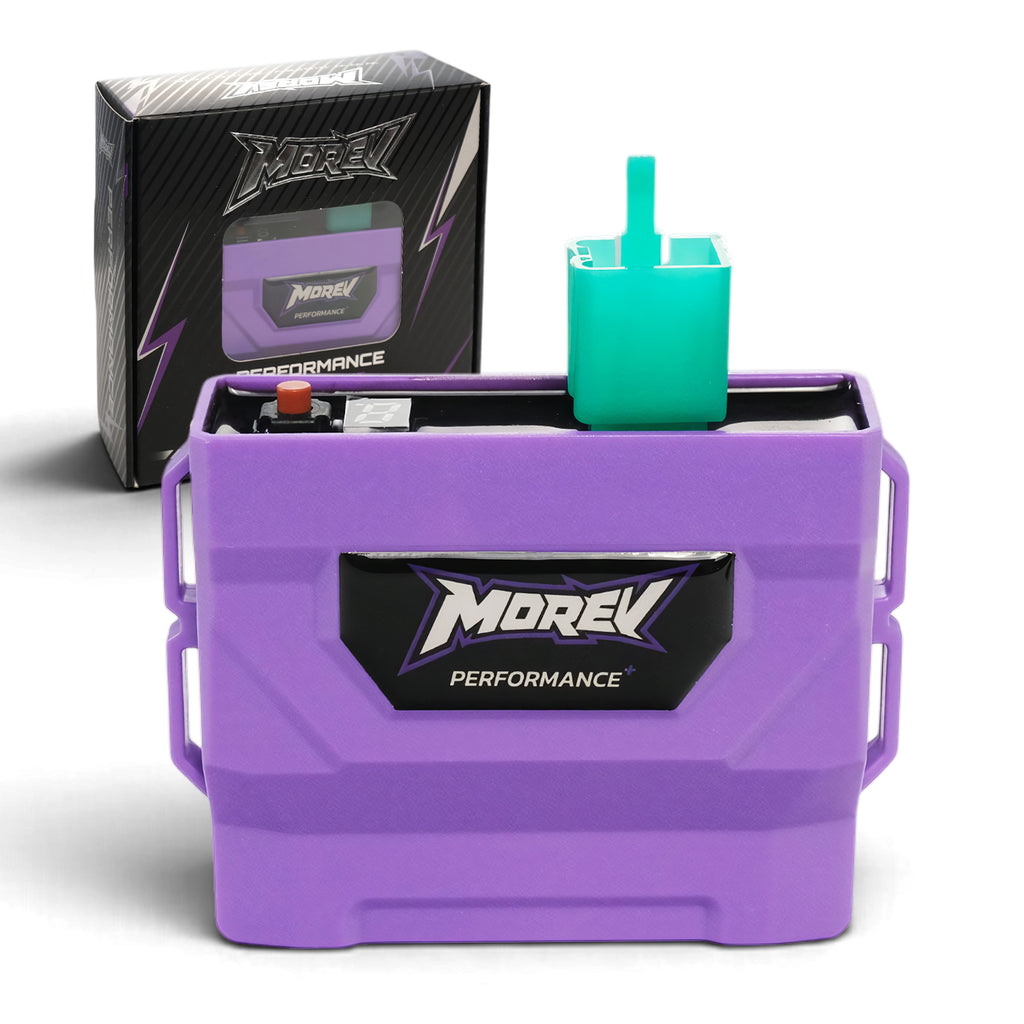

Adjustable digital ignition for compatible 4-pin DC systems. The MOREV 9-Curve CDI Box is an aftermarket ignition control module intended for selected 50cc–125cc four-stroke horizontal engines with a CD110-style 4-pin DC CDI configuration. It gives riders and technicians a choice of nine predefined ignition timing maps without having to replace the CDI each time they want to evaluate a different setting.

What the 9 Ignition Curves Do

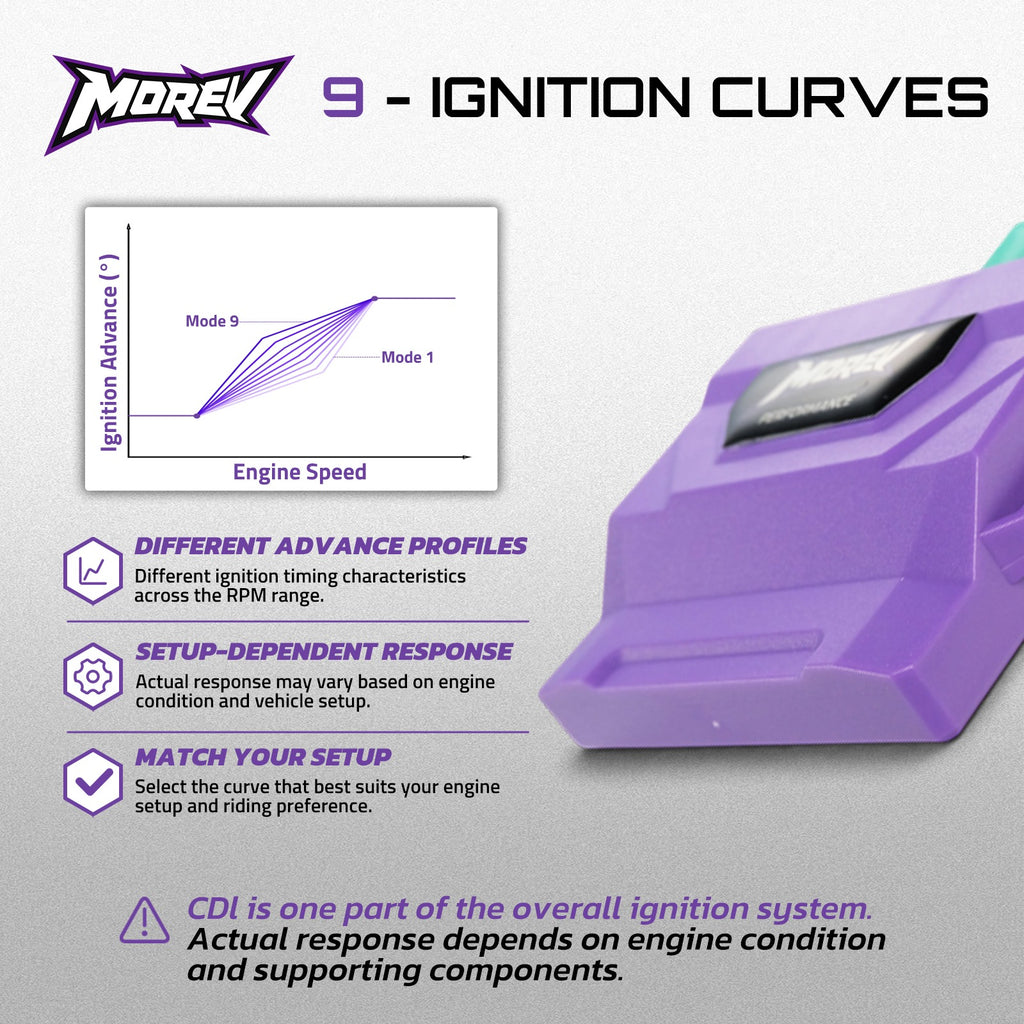

Ignition timing controls when the spark occurs during the engine cycle. Different timing maps change how ignition advance develops across engine operating conditions, which can affect throttle feel and power delivery. This unit provides nine selectable curves, numbered 1–9. Based on the MOREV curve guide, settings toward Curve 1 emphasize later-range delivery, while settings toward Curve 9 emphasize earlier response. The best choice depends on engine setup, fuel, load and riding conditions; no specific horsepower increase is guaranteed.

Key Features

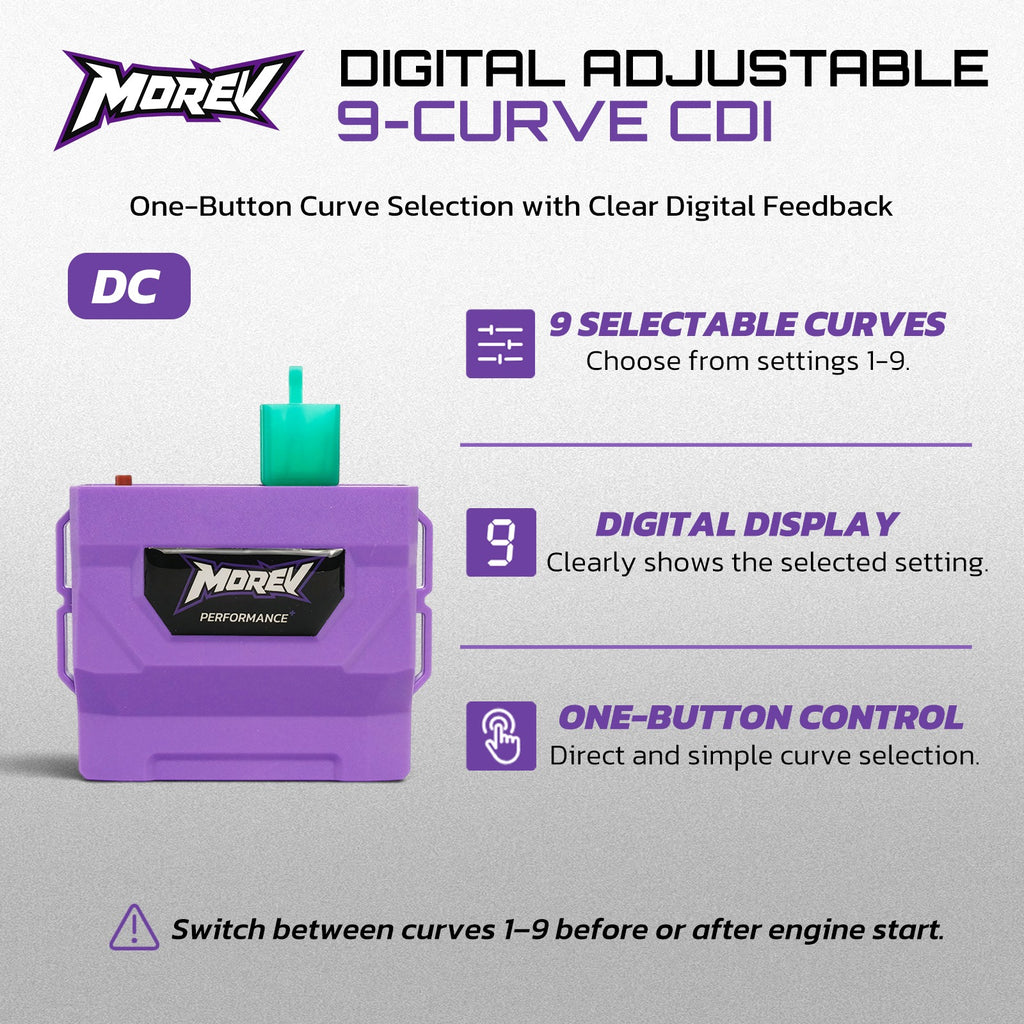

• One-button curve selection: switch among settings 1–9 using the built-in control; the selected number appears on the digital display.
• Setting memory: the CDI retains the last selected curve for the next startup.
• Adjustment after startup: curve selection remains accessible when the engine is running; make changes only when safely stopped and follow the supplied instructions.
• Purpose-built 4-pin DC version: designed for compatible DC-powered CD110-style ignition wiring, not AC-powered or GY6/CG 6-pin systems.
• Selectable ignition behavior: compare timing characteristics and find a curve suited to your engine configuration.

Compatibility & Fitment

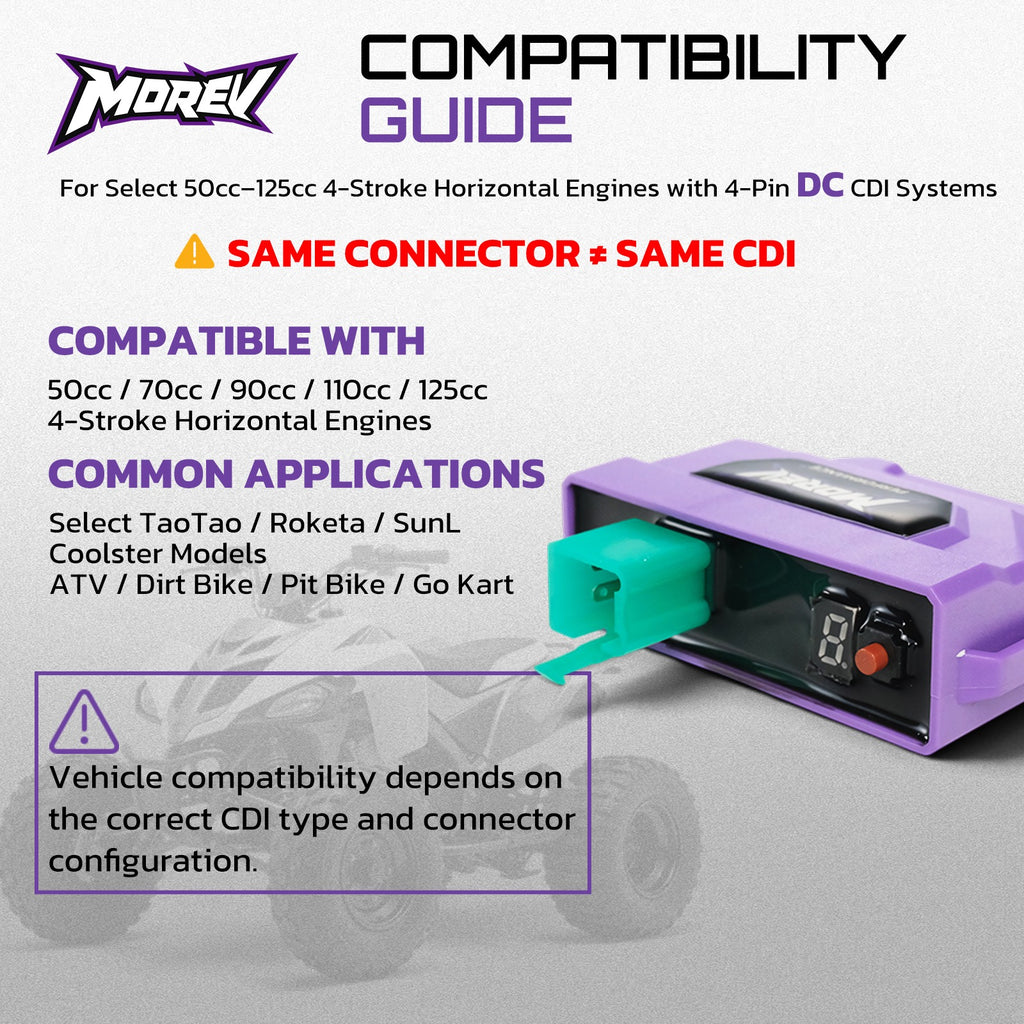

For selected 50cc, 70cc, 90cc, 110cc and 125cc horizontal four-stroke engines using a compatible 4-pin DC CDI, including some ATV, pit bike, dirt bike and go-kart configurations. Selected applications shown in the supplied reference include some TaoTao, Roketa, SunL and Coolster ATV, dirt bike, pit bike and go-kart models equipped with compatible 4-pin DC ignition. These are examples, not blanket fitment claims. Model names and engine displacement alone do not confirm compatibility. Confirm DC ignition supply, connector housing, terminal positions and wire assignments against your original CDI before ordering.

Specifications

• Brand: MOREV
• Product type: adjustable digital CDI ignition module
• Ignition system: DC CDI only
• Connector: 4-pin, CD110-style application
• Selectable ignition curves: 1–9 (no setting 0)

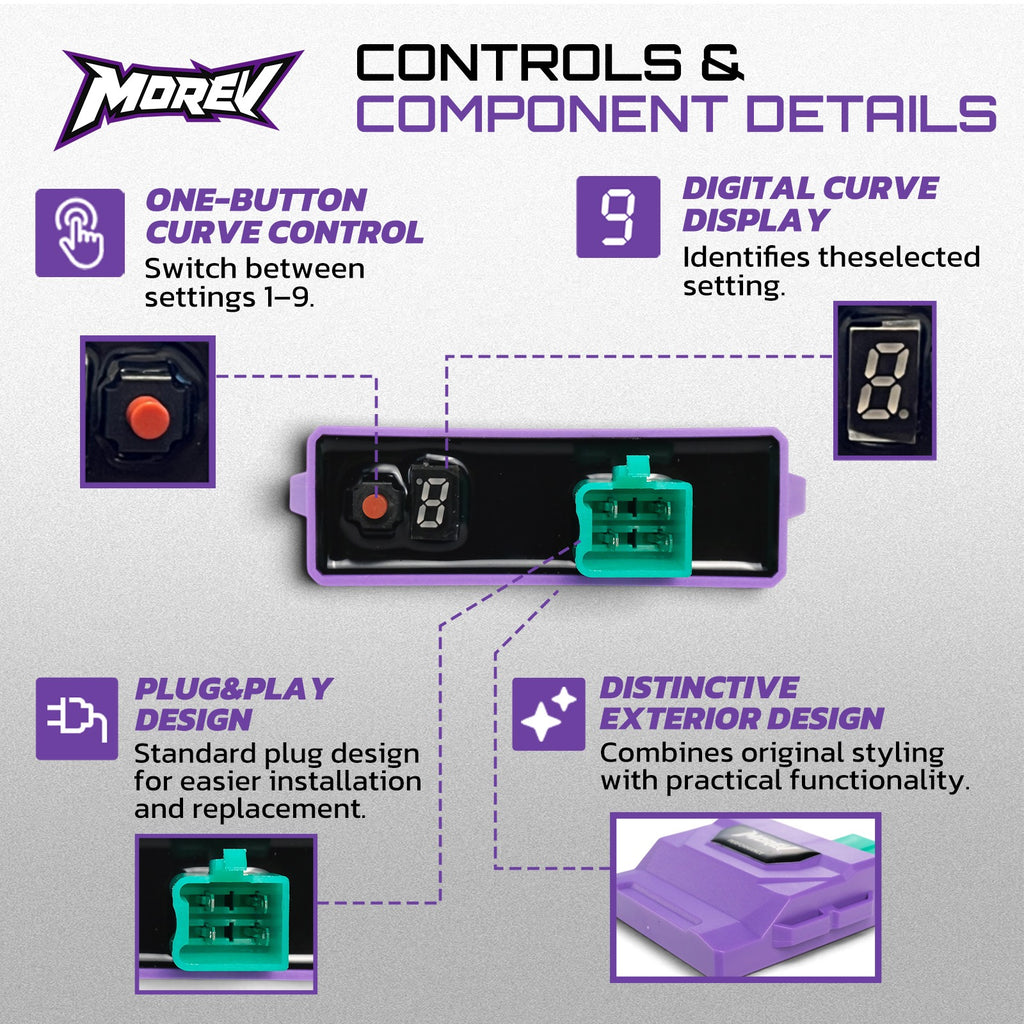

• Interface: push-button control with digital setting display

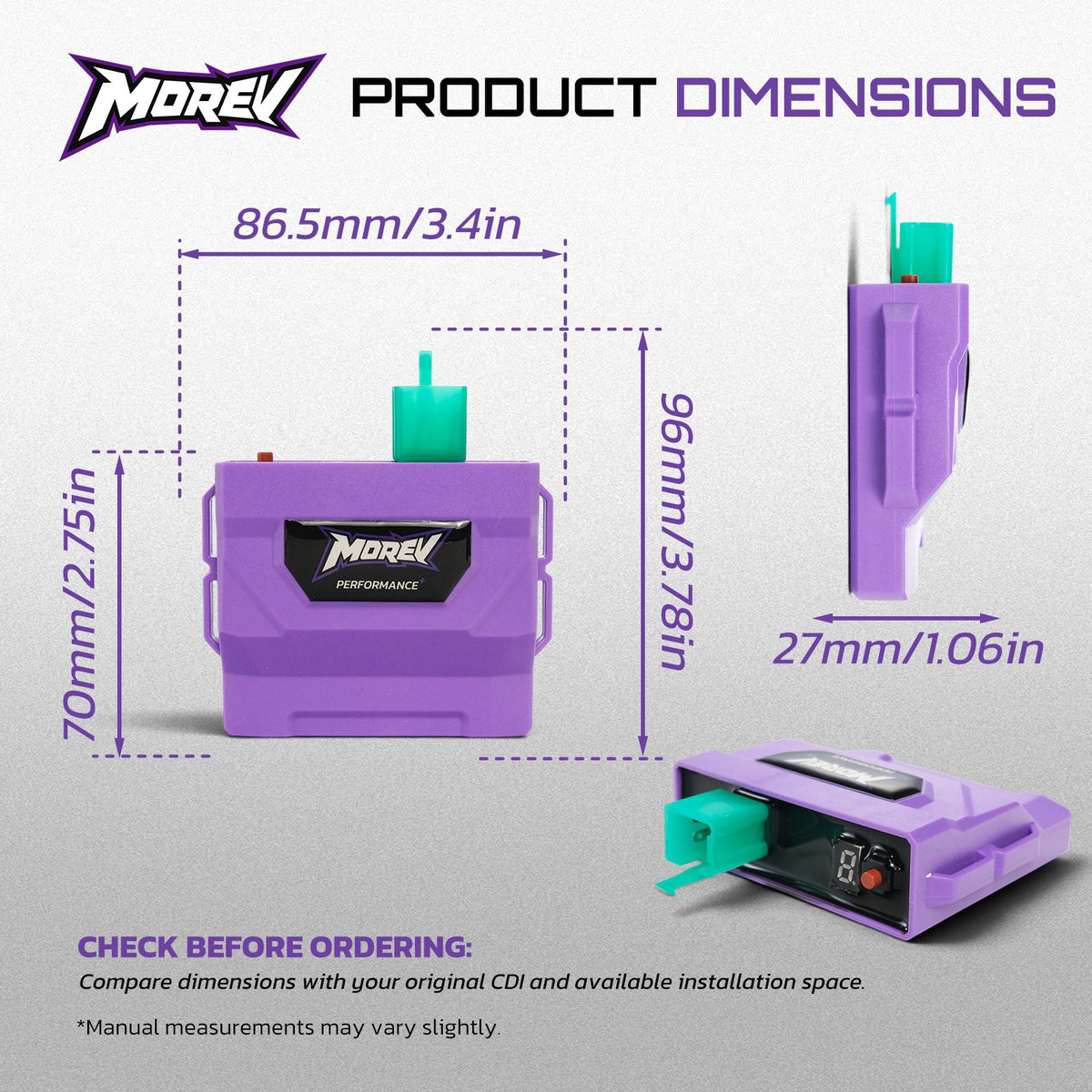

• Nominal body dimensions: 86.5 mm overall width × 70 mm housing height × 27 mm thickness; approximately 96 mm overall height including connector (measurements may vary slightly)

Installation & Safety

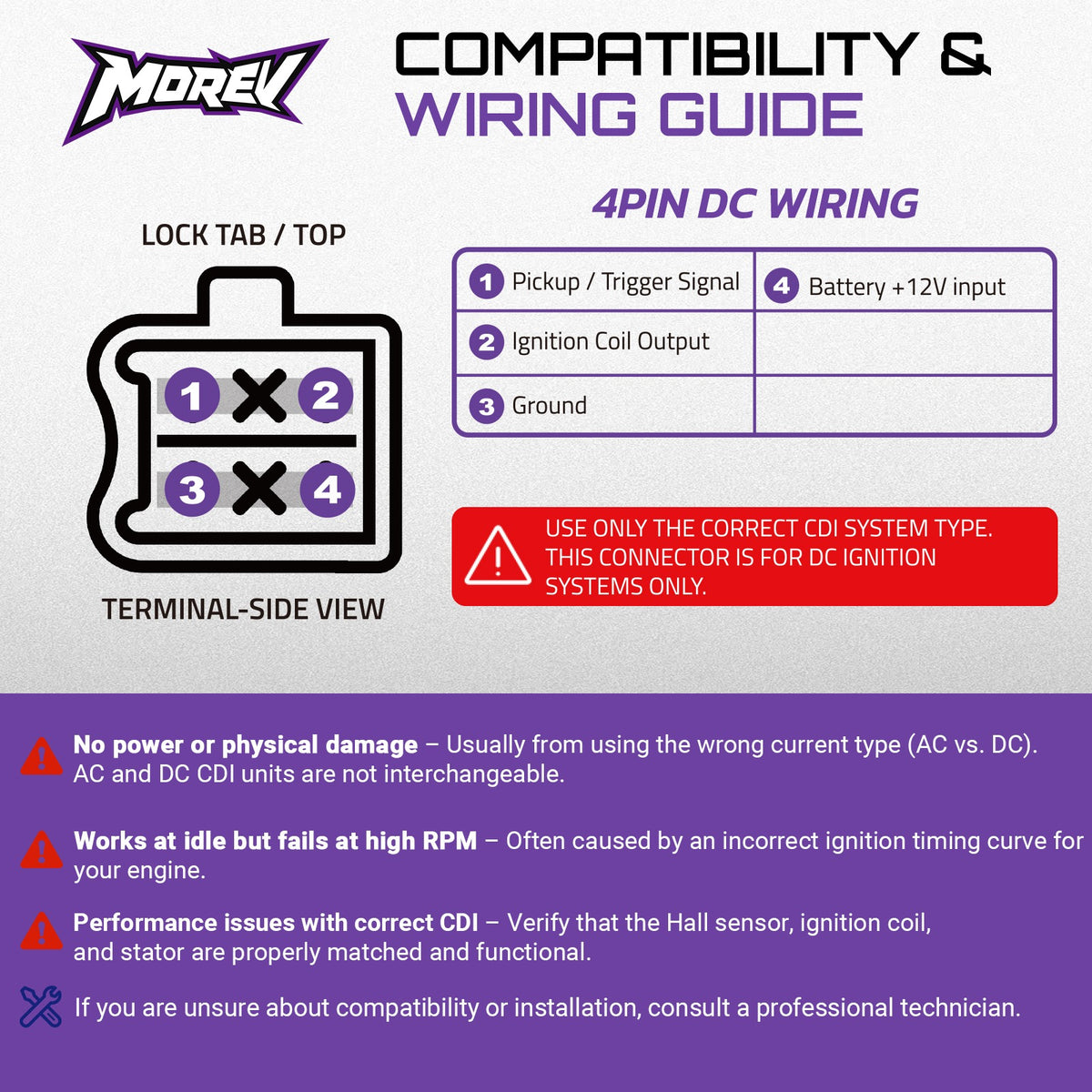

Never assume that the same connector means the same electrical configuration. AC and DC ignition modules are not interchangeable. Verify wiring, ground, pickup signal, ignition coil compatibility and original CDI type before installation. The supplied MOREV wiring reference shows the 4-pin DC plug from the terminal side, with position 1 for pickup/trigger signal, position 2 for ignition coil output, position 3 for ground and position 4 for battery +12V input. Use this as a product-specific reference and verify connector orientation and your vehicle wiring before installation. Disconnect power before fitting the module. An incorrect connection can prevent starting or damage electrical parts. For uncertain applications, consult a qualified technician.

Frequently Asked Questions

Will this work with an AC CDI ignition system?

No. This product is the 4-pin DC version and requires compatible DC wiring.

Does it have a setting 0?

No. The selectable curve settings are 1 through 9.

Does it remember my selection?

Yes. The last selected curve is retained after power-off.
