MOREV 5-Pin AC 9-Curve Adjustable CDI for 50–125cc 4-Stroke
$89.99

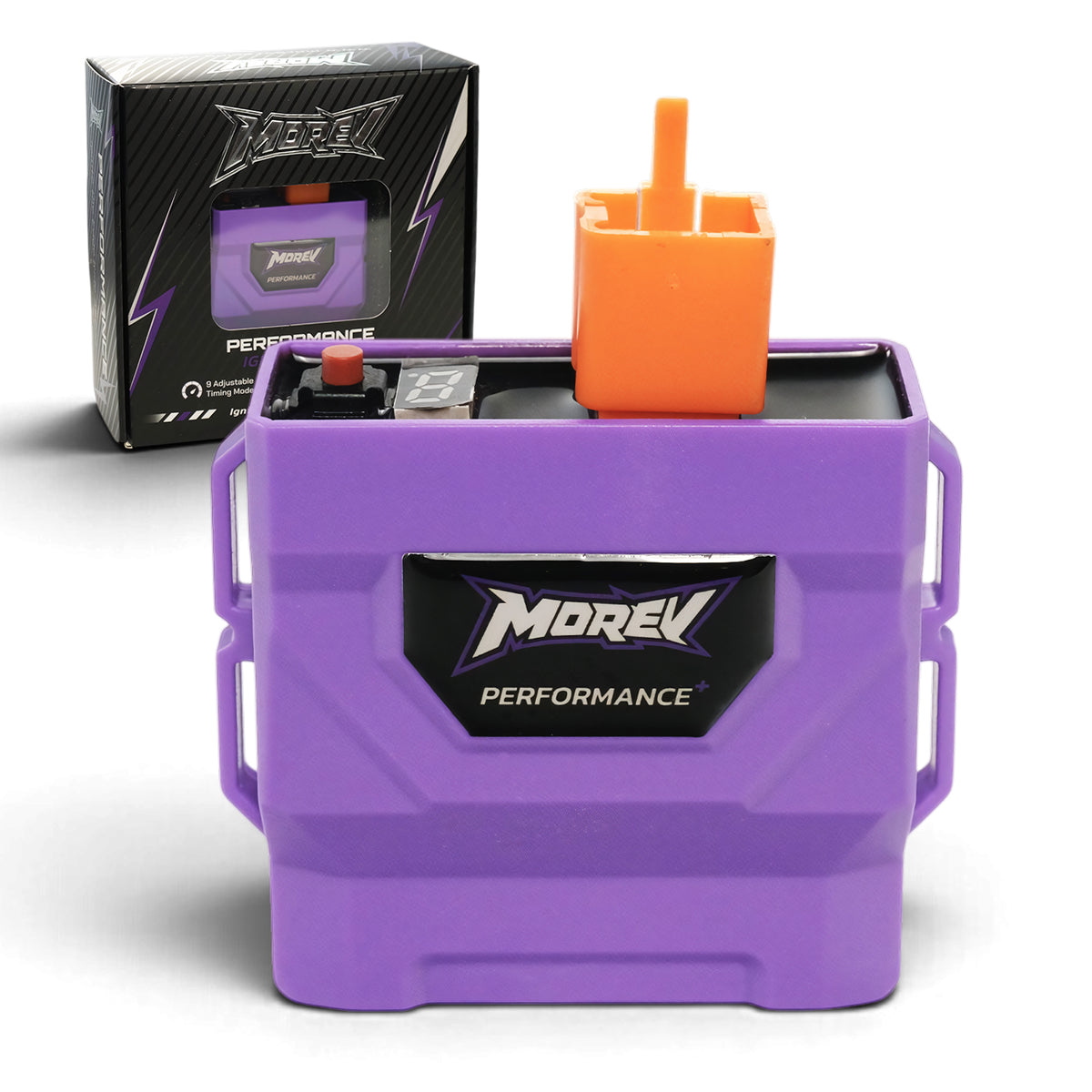

Digital adjustable CDI ignition module for select 50cc–125cc four-stroke horizontal engines equipped with a compatible 5-pin AC CDI ignition system. Select from nine ignition timing curves using the on-unit button and digital display.
Key Features

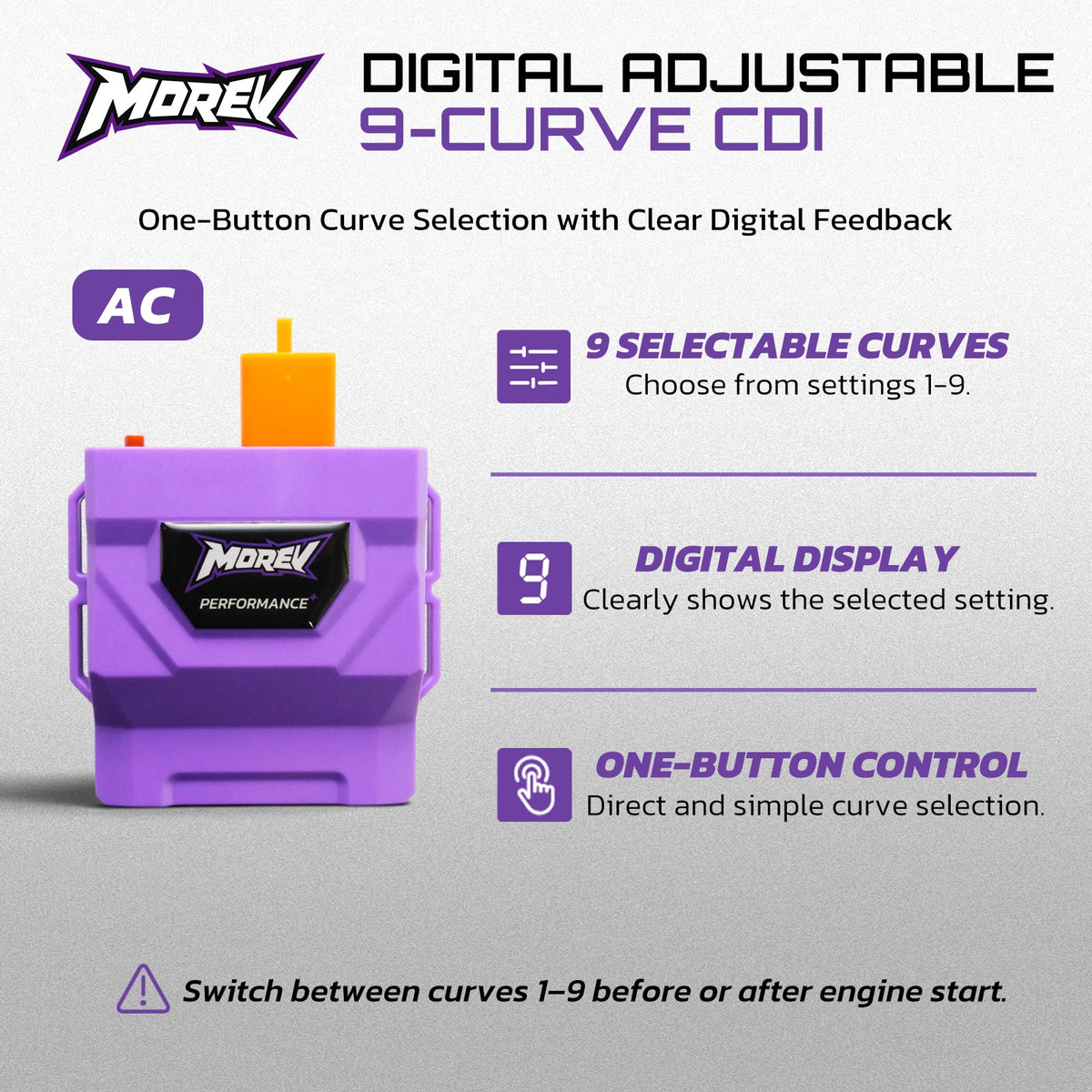

- Nine selectable ignition curves: choose settings 1–9 to suit your engine and riding setup.

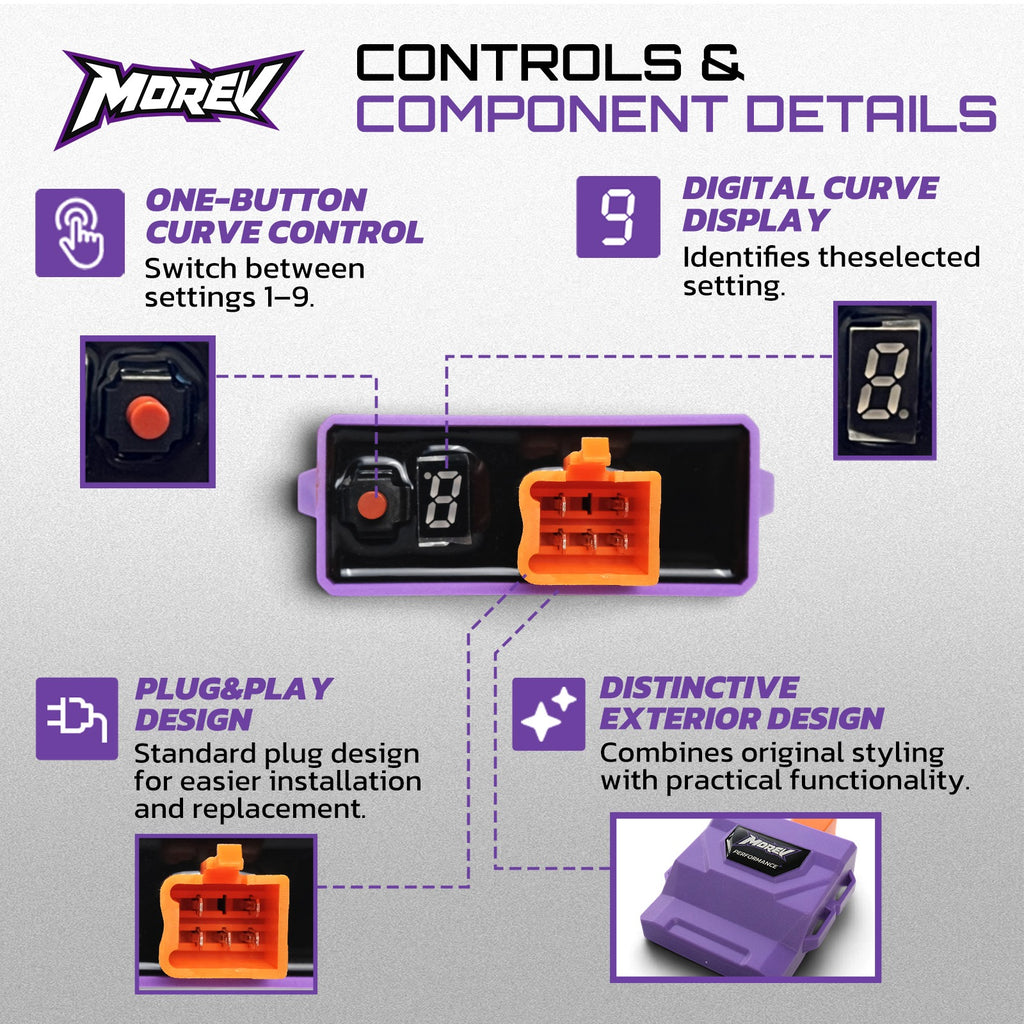

- One-button control: change the ignition curve through the built-in push-button interface, including after the engine is started.
- Digital setting display: shows the selected curve number.
- 5-pin AC configuration: intended for matching AC CDI systems only; check the original connector, pin assignments and ignition system before ordering.
Compatibility
Designed for select 50cc, 70cc, 90cc, 110cc and 125cc four-stroke horizontal-engine ATV, pit bike, dirt bike and go-kart applications using a compatible 5-pin AC CDI. Example model references include select Coolster 3125B / 3125R / 3125XR8 and certain TaoTao, SSR and X15 / X18 applications. These model references do not guarantee fitment. Confirm your original CDI type and vehicle wiring before purchase.
Product Specifications
- Brand: MOREV
- Ignition system: AC CDI (not DC)
- Connector: 5-pin AC configuration
- Control: push-button with digital display
- Adjustability: nine ignition curves, settings 1–9

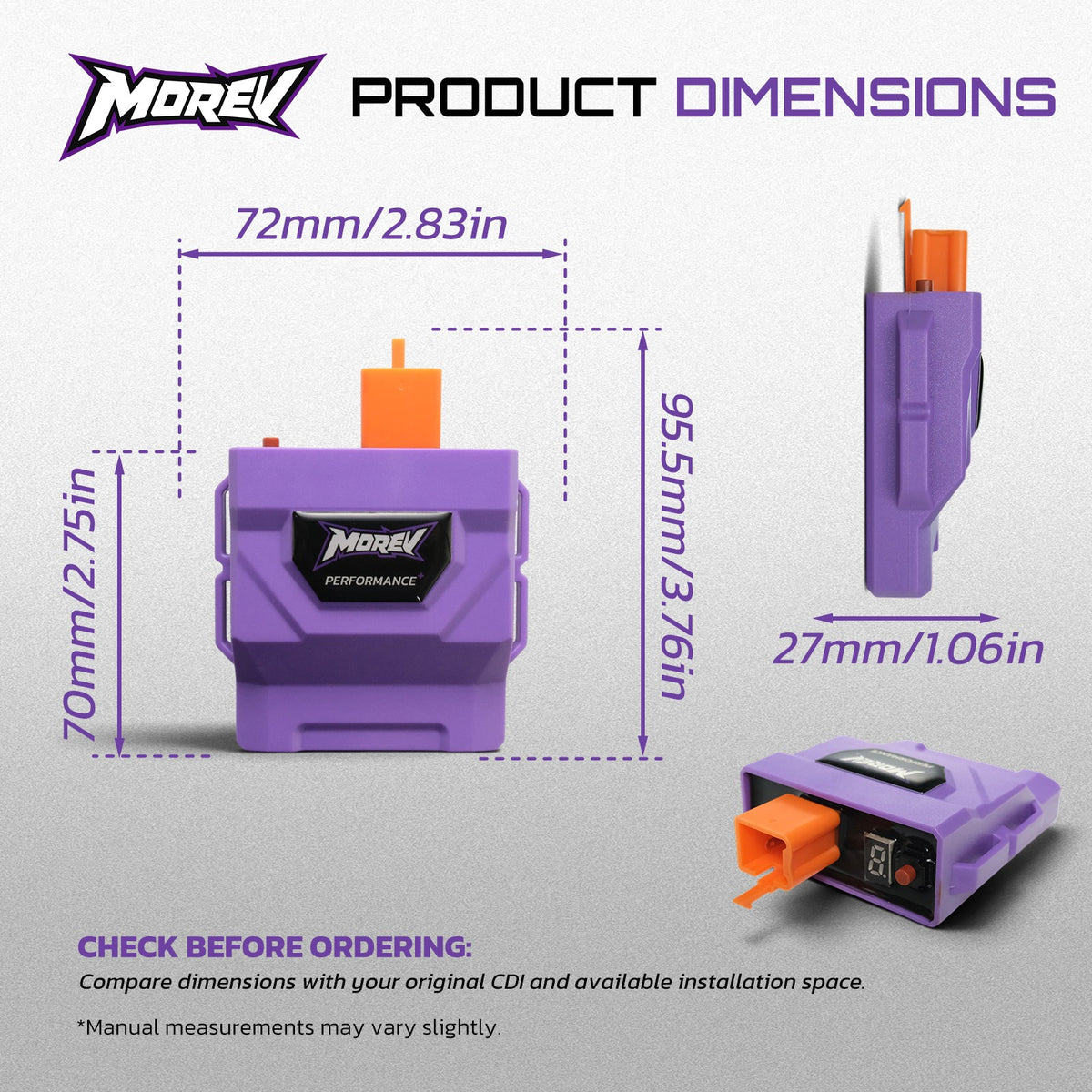

- Nominal housing dimensions (from supplied reference): approx. 72 mm wide × 70 mm tall × 27 mm thick; approx. 95.5 mm total height including connector
Important Fitment & Installation Notes

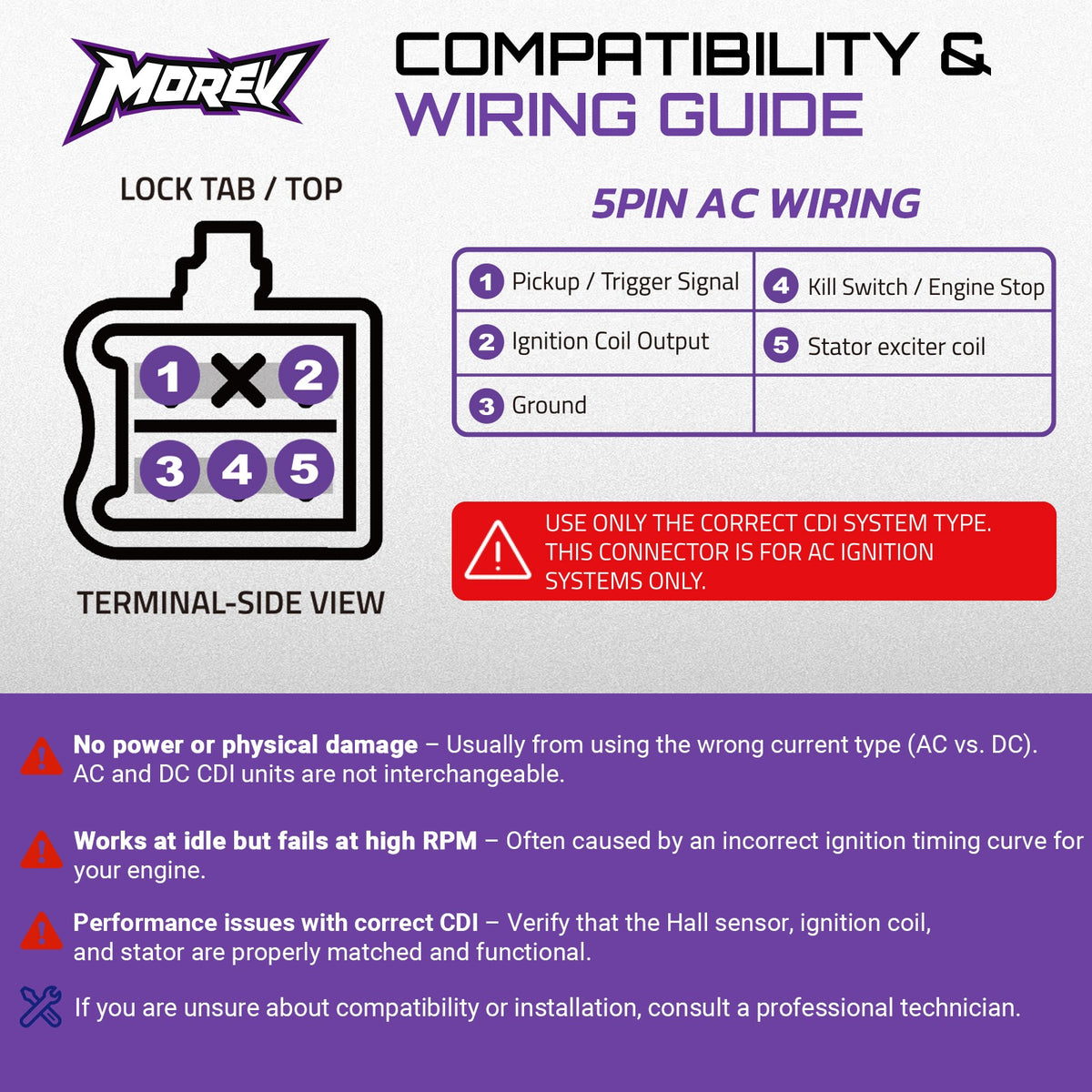

Same connector does not mean same CDI. AC and DC CDI units are not interchangeable. Pinouts may differ between vehicles that appear to use the same connector; compare the wiring arrangement, original unit and dimensions before installation. Incorrect connections may prevent starting or damage ignition components. If uncertain, ask a qualified technician to verify compatibility. Results depend on engine condition and the complete ignition setup.
Shipping
Orders ship from Guangzhou, China. Shipping options, charges and estimated delivery times depend on your destination and parcel weight, and are shown at checkout for eligible addresses. For details, see our Shipping Policy.
MOREV / BUY WITH CONFIDENCE
CHECK BEFORE YOU ORDER.
Confirm the right part for your specific vehicle before purchasing.
01 / COMPATIBILITY
Verify your setup
Compare the original part, connector, wiring, engine type, vehicle model and year. Similar-looking connectors do not guarantee interchangeable parts.
CDI reminder: AC and DC ignition systems are not interchangeable. Match the exact pinout and original system type.
02 / SUPPORT
Not sure which part fits?
Contact us with your original part number, model and year, plus photos of the connector. We'll help you review compatibility before ordering.
CONTACT MOREVMOREV / PRODUCT QUESTIONS
GOOD TO KNOW.
Key details to check before choosing an electrical component.

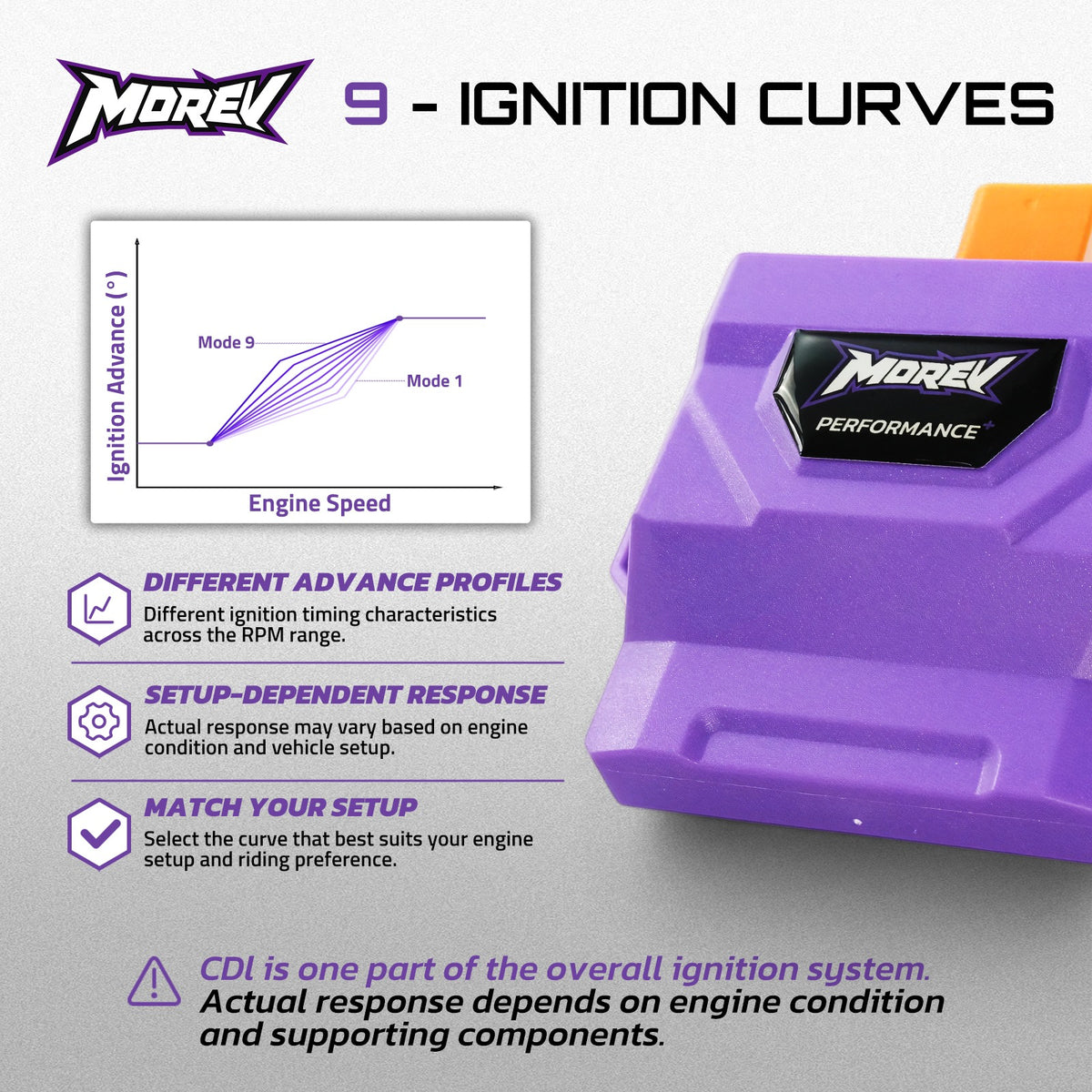

ASK ABOUT FITMENTWhat do curves 1–9 change?
The nine settings select different ignition timing profiles. They are not nine fixed RPM limits. Choose a compatible setting based on the instructions for your engine.
Can I select a curve after the engine starts?
Yes, on this MOREV 9-curve CDI model the selected curve can be changed after the engine is started. Follow its supplied instructions. This model has settings 1–9 and no setting 0.
Can I use this AC CDI with a DC CDI system?
No. AC and DC CDI systems are not automatically interchangeable. Verify the original ignition power system, pin configuration and wiring before ordering.
Does a matching 5-pin plug guarantee compatibility?
No. Similar-looking 5-pin plugs may have different internal pin assignments or ignition requirements. Check the original CDI specifications, pinout and vehicle application.
What if I am not sure before buying?
Contact our support team with your vehicle make, model, year, engine information and original part number using Contact MOREV. The team can review the details you provide.
