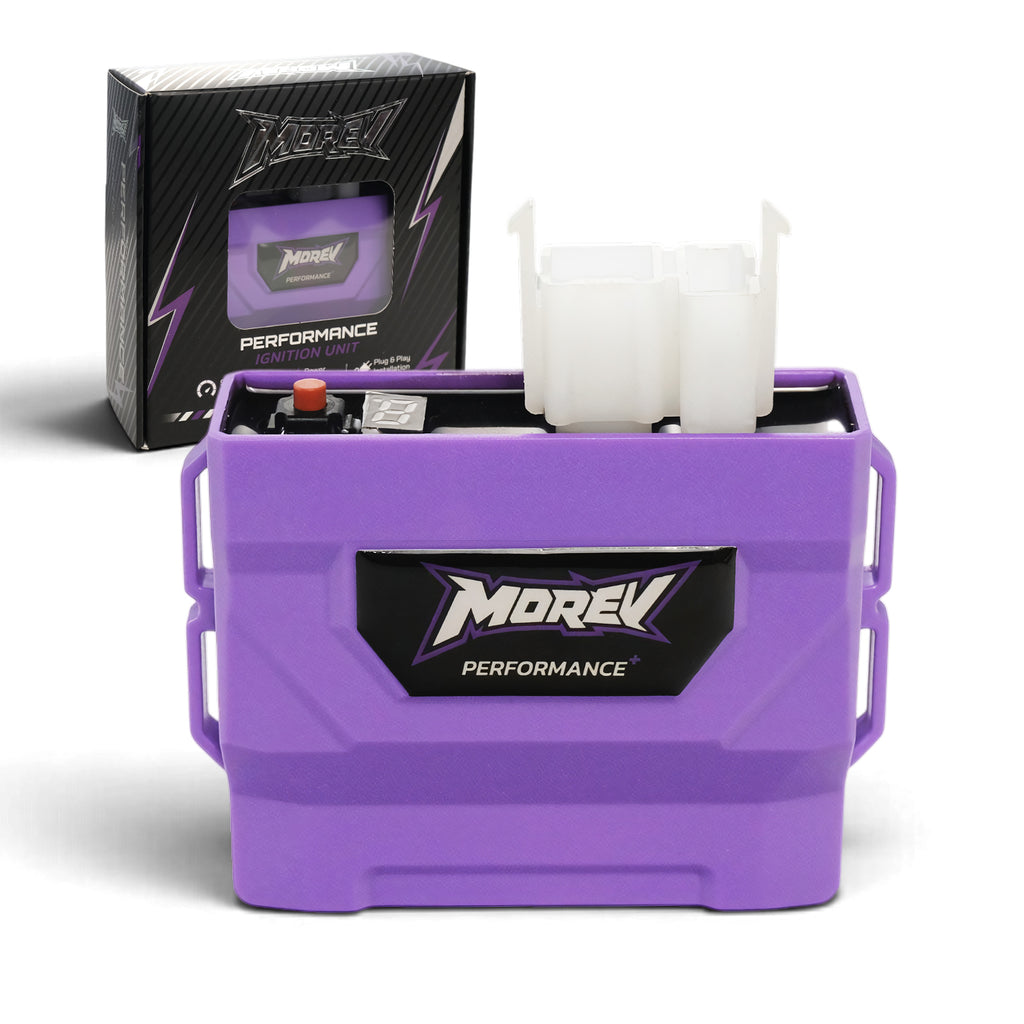

MOREV 6-Pin DC 9-Curve Adjustable CDI Box for CG125–CG250 Dirt Bike & ATV

Digital adjustable DC CDI for CG-series 125cc–250cc vertical four-stroke engines. The MOREV 9-Curve CDI Box gives owners of compatible CG 6-pin (4+2) DC ignition systems nine selectable ignition timing maps. It is designed for fitment-specific replacement or tuning of the ignition control unit on selected small powersports vehicles, with a push-button setting interface and a digital curve display.

Understanding the 9 Selectable Ignition Curves

Ignition timing affects when the spark fires relative to piston movement. Changing the timing curve alters how spark advance progresses across engine operating conditions, and may change throttle response, pulling characteristics and riding feel. This CDI provides settings 1 through 9. The MOREV curve guide describes settings near Curve 1 as favoring later-range power delivery and settings near Curve 9 as emphasizing earlier response. These are alternative ignition maps, not nine fixed horsepower levels or an assurance of increased engine output.

Features & Controls

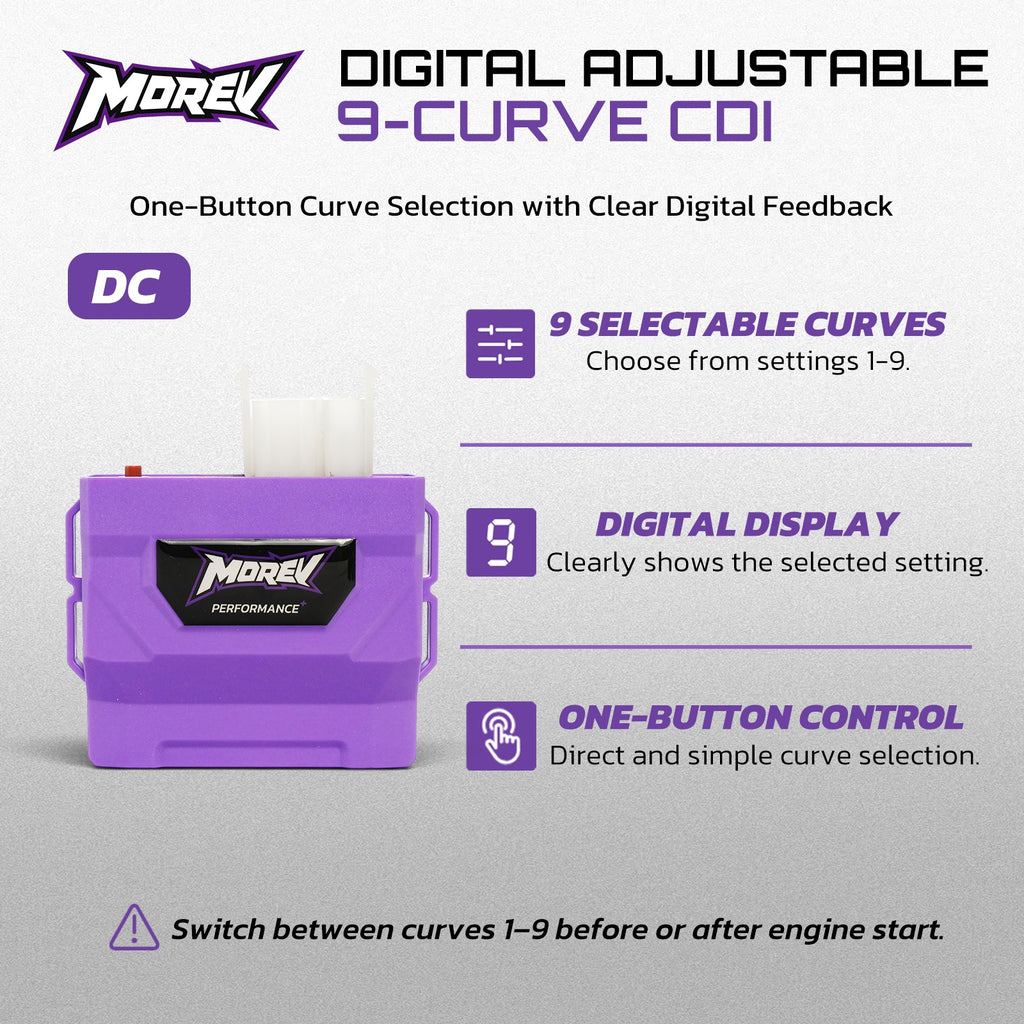

• Nine adjustable maps: compare nine pre-programmed ignition timing curves to find the behavior suited to your engine.
• Easy push-button selection: the built-in button changes the selected curve; the digital display shows the current setting.
• Last-setting memory: the module recalls the last selected curve when restarted.
• Engine-running adjustment support: settings can be changed after the engine has started; make changes only in a safe, stationary situation and follow the supplied operating guide.
• Specific DC electrical configuration: built for matching CG 6-pin (4+2) DC CDI circuits; not interchangeable with AC modules.

Engine Compatibility & Fitment Guide

Intended for selected CG-series 125cc–250cc four-stroke vertical-cylinder engines with the appropriate 6-pin (4+2) DC CDI connector and wiring. Common engine-family references include CG125, CG150, CG200 and CG250, and engine codes 156FMI, 162FMJ, 163FML and 167FMM. Some TaoTao, Roketa, SunL and Coolster dirt bikes, ATVs and go-karts use related vertical engine configurations. These are examples, not guaranteed model-wide fitments. Confirm that the original ignition is CG 6-pin (4+2) DC with matching power supply, terminal layout and wiring.

Before ordering, compare all four: engine family (CG versus GY6), DC versus AC ignition type, physical connector arrangement, and the actual wire-to-pin assignments of the original module. Connector shape or advertised displacement alone does not establish fitment.

Electrical & Product Specifications

• Brand: MOREV
• Product: Digital adjustable CDI ignition box
• Engine family: CG vertical four-stroke
• Ignition power type: DC only
• Connector: 6-pin, split 4+2 configuration
• Curve settings: 1–9, no setting 0
• Controls: Integrated button and numerical display
• Memory: Retains last selected curve after power-off

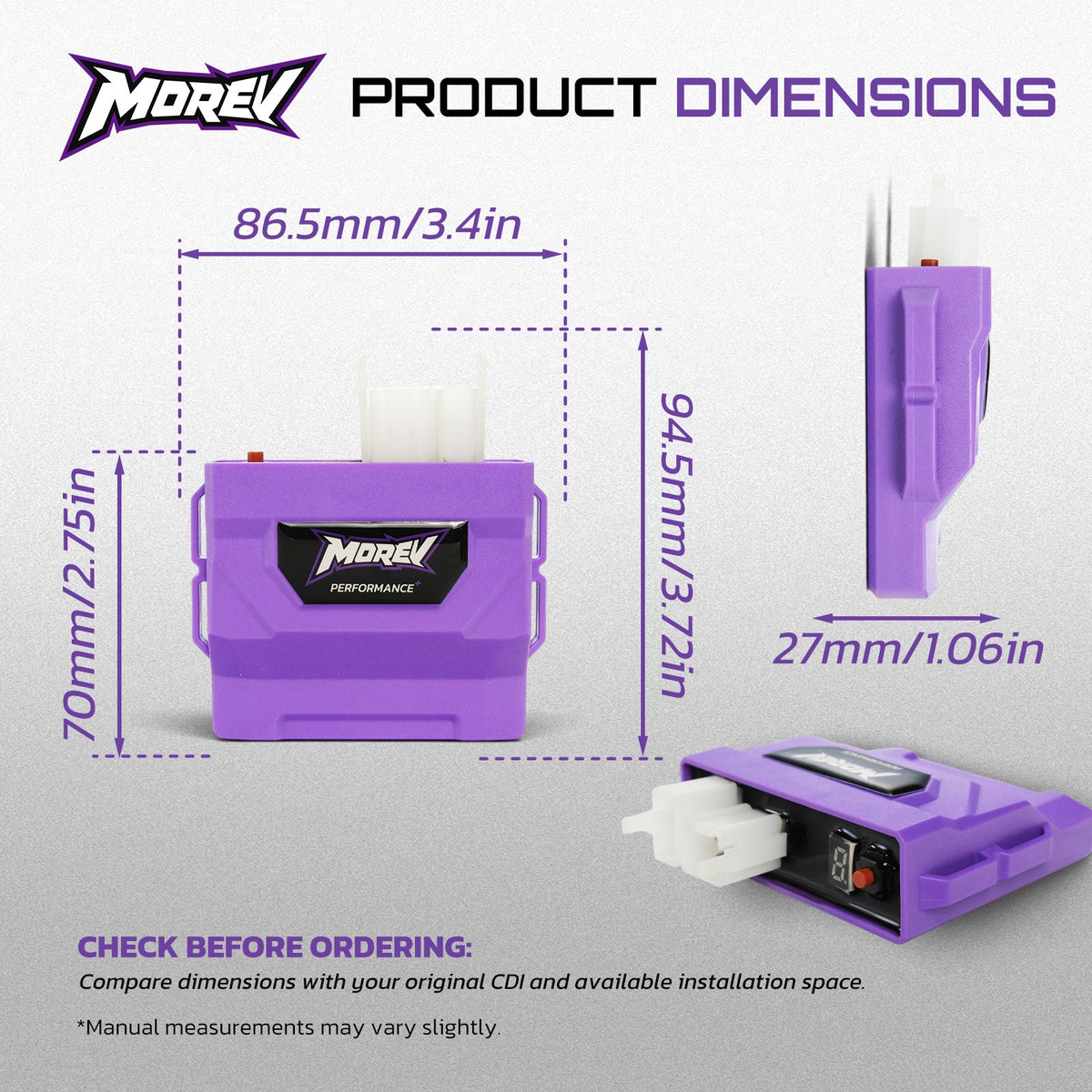

• Approximate dimensions: 86.5 mm overall width × 70 mm housing height × 27 mm thickness; 94.5 mm total height including connector (manual measurements may vary slightly)

Installation & Important Warnings

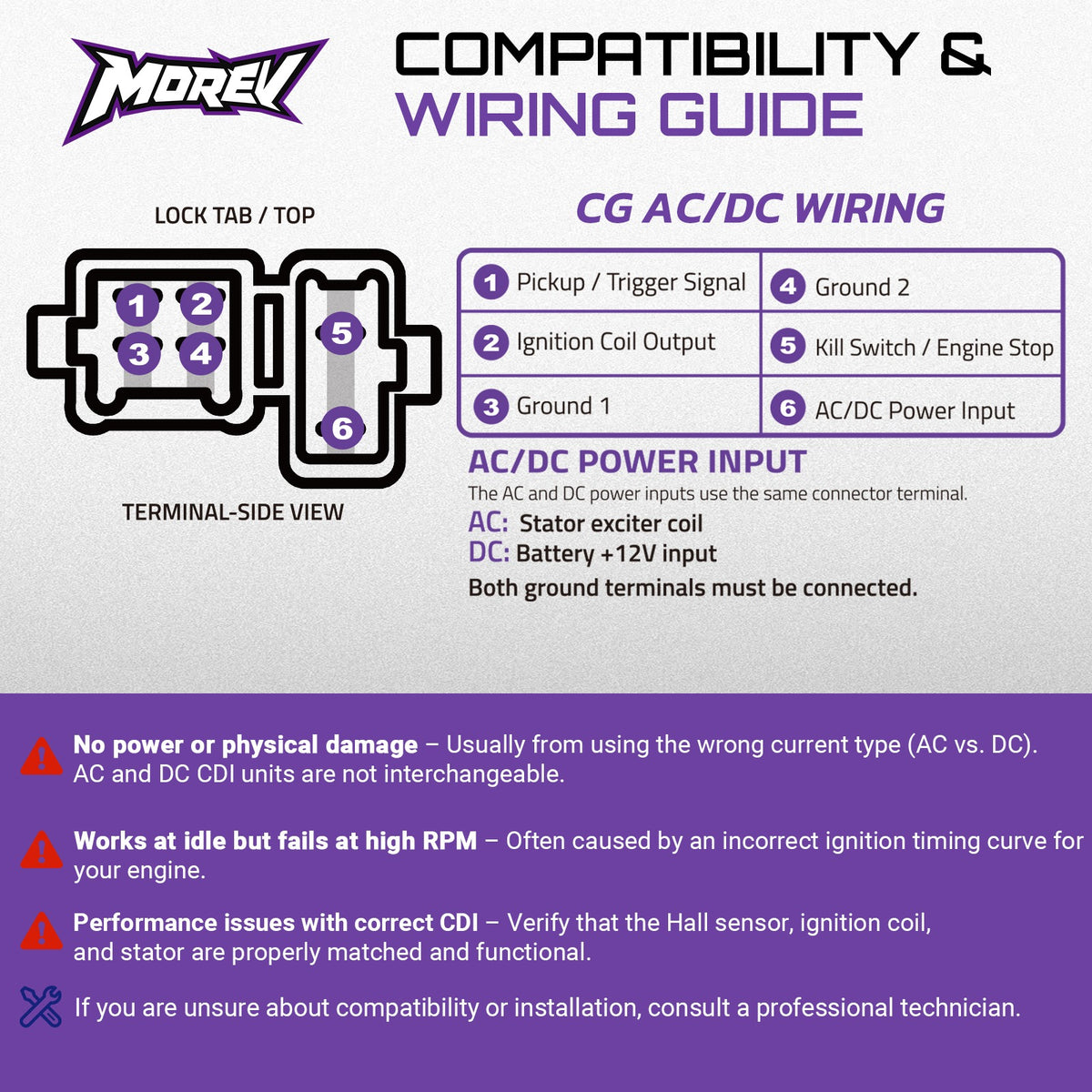

A DC CDI receives ignition power from a suitable DC electrical supply. A 6-pin AC CDI can share a similar connector layout but must not be substituted for this module. This is the DC-powered CG CDI only. The supplied terminal-side wiring illustration covers the shared CG AC/DC connector design. For this DC model, terminal 6 requires battery +12V DC input, not AC stator exciter voltage. In the illustrated terminal-side orientation, terminal 1 is pickup/trigger signal, terminal 2 ignition coil output, terminals 3 and 4 grounds, and terminal 5 kill switch/engine stop. Both ground terminals must be connected according to the product wiring guide. Verify connector orientation and each wire against the actual vehicle harness before installation. Never connect AC and DC power sources simultaneously, and never feed the AC stator exciter circuit into this DC-only CDI. Turn off the vehicle and disconnect the power before installation. Verify ground, pickup/pulse signal, ignition coil connection and the harness pinout against your original CDI. Incorrect wiring may result in no-start conditions or component damage; consult a qualified mechanic if the configuration is uncertain.

Frequently Asked Questions

Does every CG engine use this CDI?

No. Engine-family names cover multiple ignition wiring systems. This is the CG 6-pin DC version only.

Are settings 1–9 RPM limits?

No. They are nine ignition timing curves. This product should not be confused with the MOREV DIP-switch speed-limit CDI series.

Does the unit return to its first curve after shutdown?

No. It retains the previously selected curve in memory.

Can I change the selected curve after starting the engine?

Yes, the control remains available after startup. Stop the vehicle safely before making any changes.

Shipping & Support

MOREV orders ship from Guangzhou, China. Available shipping destinations, charges and estimated delivery times depend on the delivery address and parcel weight. Review our Shipping Policy, or contact MOREV with a clear photo of your original CDI connector if you need help checking the configuration.
